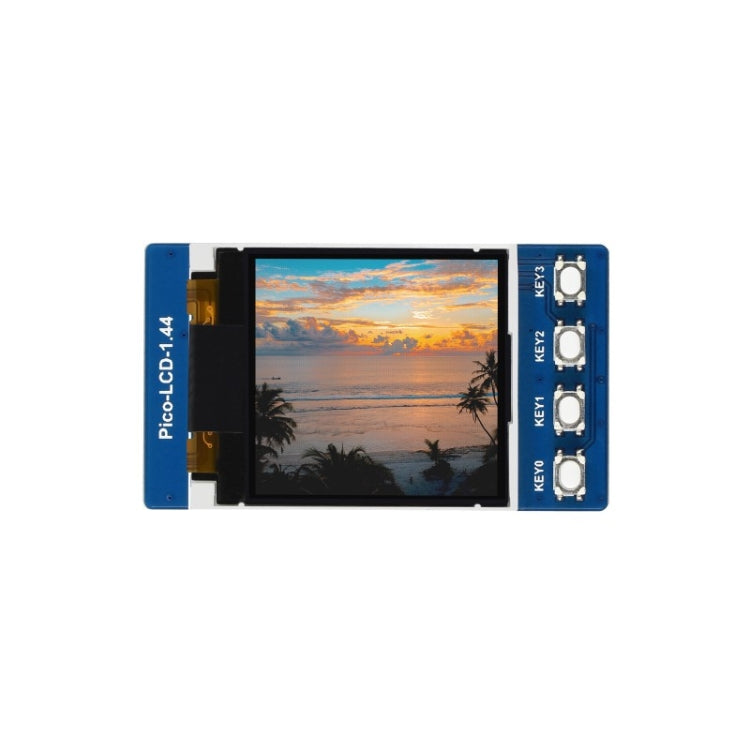

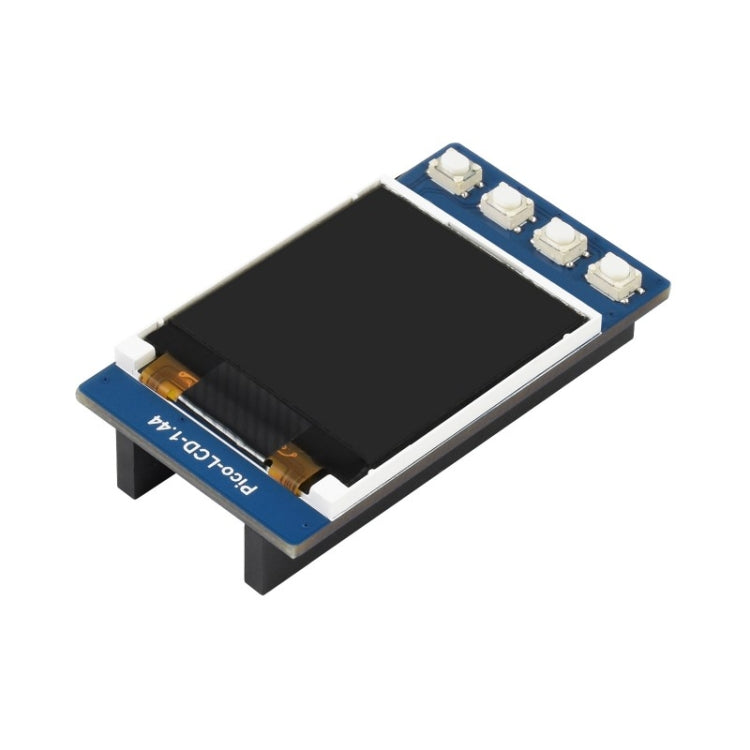

WAVESHARE 1.44 inch LCD 65K Colors 128 x 128 Display Module for Raspberry Pi Pico, SPI Interface, 1.44 inch
1.44 inch
£6.99 GBP
Sale price
£6.99 GBP
Regular price
Skip to product information

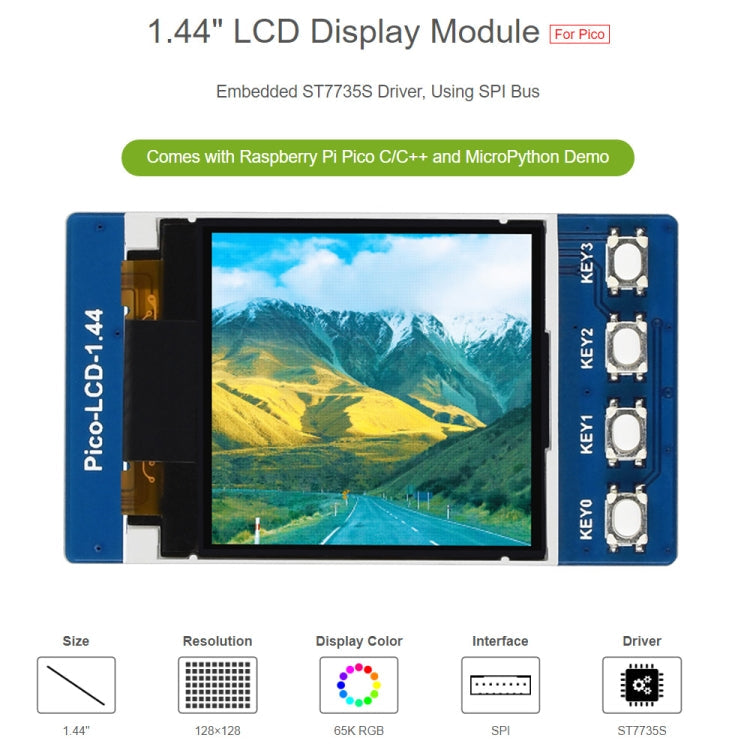

Features
1. 128 x 128 resolution, 65K RGB colors, clear and colorful displaying effect
2. SPI interface, requires minimal IO pins
3. 4x user buttons for easy interacting
4. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

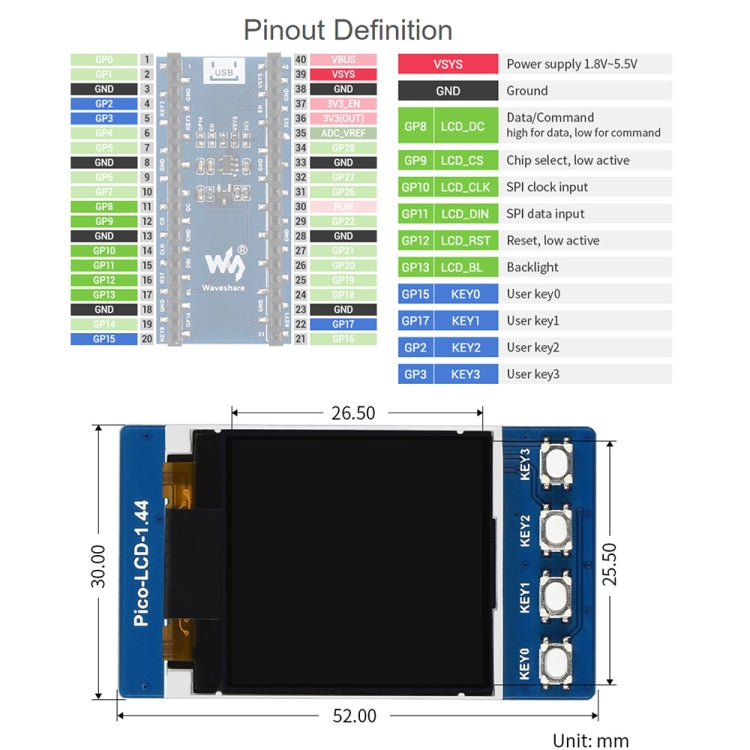

Specification
1. Operating voltage: 3.15V ~ 5V
2. Communication Interface: 4-wire SPI
3. Resolution: 128 x 128 pixels
4. Display color: 65K colorful
5. Communication BUS: SPI
6. Display panel: TFT
7. Display size: 25.50 x 26.50 mm
8. Pixel size: 0.20 x 0.20 mm
9. Driver: ST7735S
10. Size: 52.0 x 30.0 mm
WAVESHARE 1.44 inch LCD 65K Colors 128 x 128 Display Module for Raspberry Pi Pico, SPI Interface, 1.44 inch
£6.99 GBP
Sale price
£6.99 GBP
Regular price
1. 128 x 128 resolution, 65K RGB colors, clear and colorful displaying effect
2. SPI interface, requires minimal IO pins
3. 4x user buttons for easy interacting
4. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specification
1. Operating voltage: 3.15V ~ 5V
2. Communication Interface: 4-wire SPI
3. Resolution: 128 x 128 pixels
4. Display color: 65K colorful
5. Communication BUS: SPI
6. Display panel: TFT
7. Display size: 25.50 x 26.50 mm
8. Pixel size: 0.20 x 0.20 mm
9. Driver: ST7735S
10. Size: 52.0 x 30.0 mm
